120mm Diameter P84 Filter Star Bag P84 Pleat Dust Collect Bag Filter Surface Extended Bag
Datasheet
| Style | star bag, pleat bag, expand filter surface/area bag |
| Pleats No. | 8 /12 pleats |
| Material | P84 |
| Diameter | 120 | mm |
| Length | TBD | mm |
| Strap / band | Type | cut felt strap |
| afixing | thread sewing to bag |
| Width | 25 | mm |
| Distance | 250 | mm |
| Top | Opening | 120 | mm |
| Cuff | Type | bead cuff |
| Width | 25-30mm |
| Thickness | 3-7mm |
| Distance | 4-8mm |
| Metal hoop | inside of top | yes |
| material | 304 stainless steel |
| width | 25-30mm |
| Fix | sew to bag body |
| Boot / Bottom | Diameter | 120 | mm |
| Height | 100-120 | mm |
| Reinforcement | two layers |
| Bottom disc | two layers |
| Metal hoop | no, 20-25mm 304 stainless steel if yes |
| Fix | sew to bag body |
| Seam | Type | thread sewing |
| Bag panel/body | triple rows sewing |
| Cuff panel | 2 double rows sewing |
| boot upper | 2 double rows sewing |
| boot bottom | double rows sewing |
| Pack | Poly bag and pallet, or carton and pallet |
Filter surface expanded
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,
Filter area increasing (%)
| filter surface | Dianmter mm | Bag Length |
| 1m | 2m | 3m | 4m | 5m | 6m |
| 8 pleats | 120 | 38.64 | 55.97 | 61.75 | 64.64 | 66.37 | 67.52 |
| 12 pleats | 120 | 70.91 | 92.28 | 99.40 | 102.96 | 105.10 | 106.52 |
So
• longer bag service life
• increase the air volume of existing dust collectors to increase production capacity
• lower emission
• reduce energy consuption
• reduce operation cost
• reduce pressure drop
• lower pulse jet pressure and frequence
• small bag house and building area
• lower the filter velocity

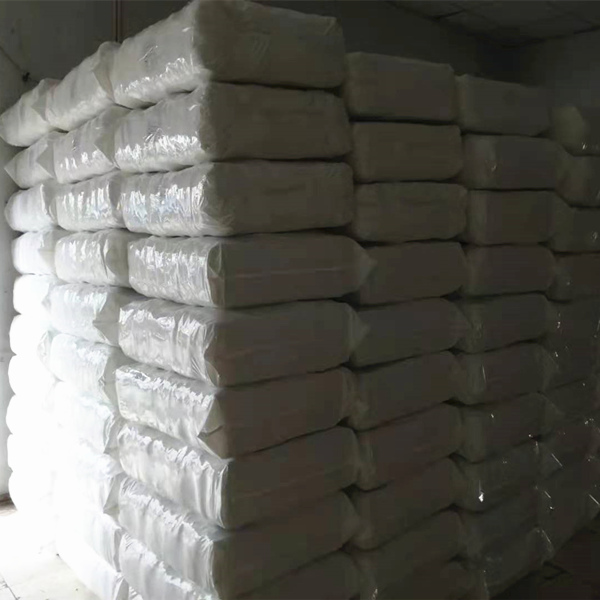

How to pack
We fold bag into a specification per bag dismater and length which can suit polybag and carton, and then put sealed polybag and carton on pallets, pack them per container type.
